PRODUCTS

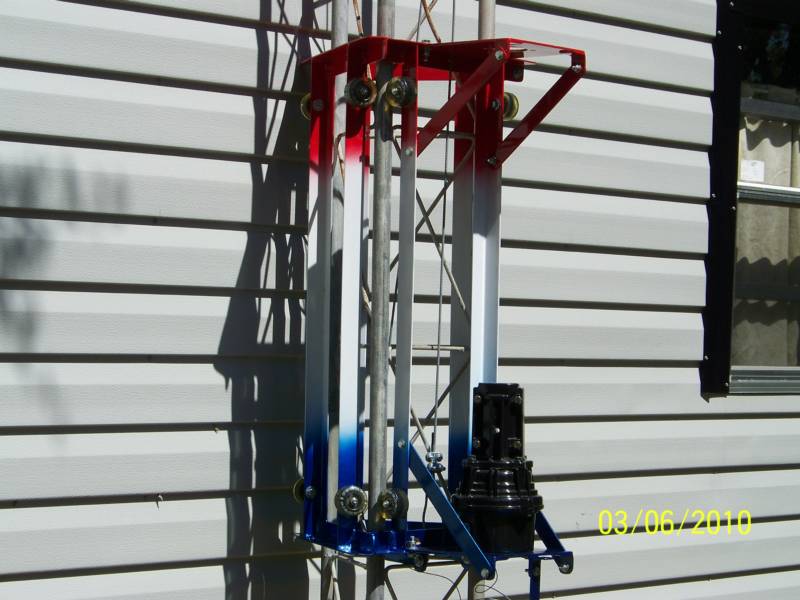

RT Razor - custom built Antenna Lifts for Rohn 25, 45 & 55 towers
-Quality welded steel construction and proven reliability. Can handle a big antenna with ease!
(W8RAT himself was part of a 450 lb. load riding down on a local customer's RTR45 when their rotator bolts sheared
off & their antenna system was stuck at 60 ft. John rode the lift down while holding the antennas in place)
-Custom durable Delrin wheel system with aluminum bushings designed to allow smooth transport up and down the towers.
-Dual safety feet for security and functionality.
-Designed for easy installation and usage, even on existing towers.
-Can be used with guy wires up to a certain height.
-Includes 1/8" galvanized cable (400lb WLL/2000lb break strength) & poly pull rope for safety feet (incl. for up to a 50' tower, $2.00 for each additional tower foot). *Complete package comes with cable & all nuts, bolts, pulleys, plates & brackets.* Thrust bearing, rotator & winch motor NOT included.
-Stainless Steel Harkin Pulley. (matched to wire rope size - min. safe work load 1500 lbs)
-Pre-drilled for Yaesu 065 thrust bearing & most common rotators. Custom drilling available at minimal cost - please ask.
-Powdercoated in Silver/Grey standard color
-Custom colors/schemes available at additional cost*
Rohn 25 - Standard package $1125.00* Part# RTR25
Rohn 45 - Standard package $1200.00* Part# RTR45
Rohn 55 - Standard package $1250.00* Part# RTR55
Available accessories/upgrades:
Stainless hardware package - (all nuts/bolts/U-bolts) $90.00
3/16" cable (840lb WLL/4200lb break strength) & size matched SS Pulley - $60.00
Tower height over 50' - $2.00 per foot for additional cable & rope.
**if using Stainless Hardware, use hand tools only and Never Seize to avoid nuts locking up and causing thread damage. No power tools should ever be used with Stainless hardware.**
_________________________________________________________________________________

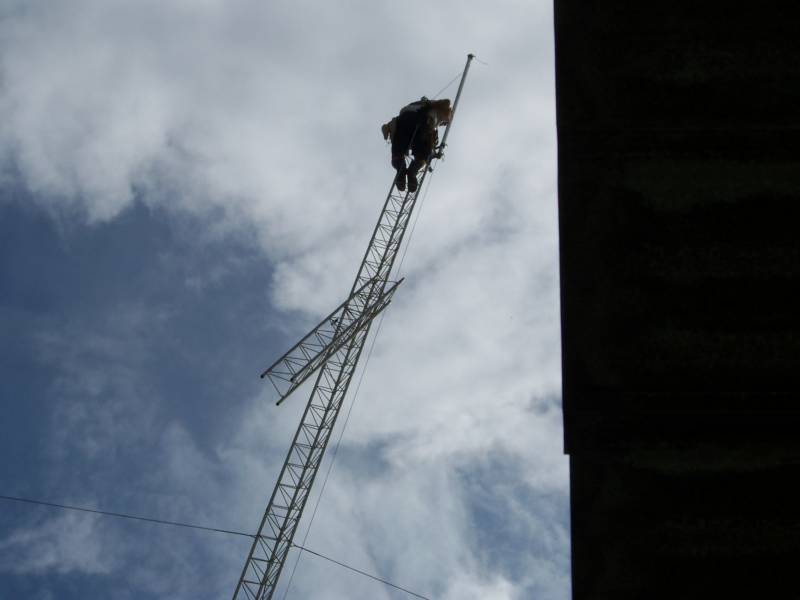

RT Gin Pole
*Custom designed for "no tool" usage & improved top pulley
*Lower diverter pulley bracket for ground crew safety
*3 pc set includes Top Pulley, Main Bracket and Diverter Pulley - (all you need is the 2" OD pipe)
RT Gin Pole set $325.00 Part# RTGin
*Prices subject to change without notice due to increases in material and labor costs. This will include orders received up until time of shipment*
*Please visit the Ship/Pay page in regards to anticipated lead times
